75mm f/2.5 Summarit-M: Difference between revisions
From Leica Wiki (English)
Jump to navigationJump to search
mNo edit summary |
mNo edit summary |
||
| Line 1: | Line 1: | ||

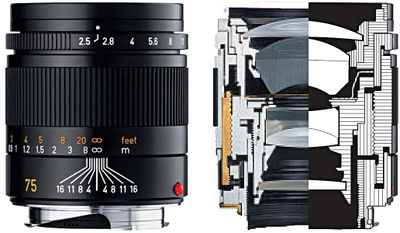

[[Image:M-75f25-c.jpg| | [[Image:M-75f25-c.jpg|400px|]] | ||
*'''Leica Order No.''' - 11 645 | *'''Leica Order No.''' - 11 645 '''LLC''' - | ||
*'''Era''' - Current | *'''Era''' - 2007-Current | ||
*'''Lens mount''' - Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models | |||
*'''Number of lenses/groups''' - 6/4 | |||
*'''Aperture''' - 2.5 > 16 - Setting/Function Preset, with click-stops, half values available | |||
*'''Focusing range''' - 0.9 / 3 ft to ∞ | |||
*'''Smallest object field/Largest reproduction ratio''' - For 35 mm, approx. 338 x 357 mm /1:14.1 = for LEICA M8, approx. 254 x 380 mm /1:9.9 | |||
*'''Position of entrance pupil''' - (from apex of 1st lens element) 29.9 mm / 1.2 in | |||
*'''Angle of view''' (diagonal, horizontal, vertical) - For 35 mm (24 x 36 mm) : 32 deg, 27 deg, 18 deg, - for LEICA M8 (18 x 27 mm) : 24.4 deg, 20.4 deg, 13.7 deg, corresponds to a focal length of approx. 100 mm with 35 mm-format | *'''Angle of view''' (diagonal, horizontal, vertical) - For 35 mm (24 x 36 mm) : 32 deg, 27 deg, 18 deg, - for LEICA M8 (18 x 27 mm) : 24.4 deg, 20.4 deg, 13.7 deg, corresponds to a focal length of approx. 100 mm with 35 mm-format | ||
*'''Scales''' - Combined meter/feet graduation | *'''Scales''' - Combined meter/feet graduation | ||
*'''Filter mount/Lens hood''' - Non-rotating, internal thread for screw-on filters size E46 / external thread for lens hood, protection ring for external thread included in delivery | |||
*'''Accessories''' - Lens Hood | |||
*'''Filter mount/Lens hood''' - Non-rotating, internal thread for screw-on filters size E46 | |||
*'''Viewfinder''' - Camera viewfinder | *'''Viewfinder''' - Camera viewfinder | ||
*'''Material''' - Anodized aluminum, brass and optical glass | *'''Material''' - Anodized aluminum, brass and optical glass | ||
*'''Length to bayonet flange''' - approx. 60.5 mm | *'''Length to bayonet flange''' - approx. 60.5 mm / 2.4 in | ||
*'''Largest diameter''' - approx. 55 mm | *'''Largest diameter''' - approx. 55 mm / 2.2 in | ||
*'''Weight''' - approx. 345 g | *'''Weight''' - approx. 345 g / 12.2 oz | ||
*'''Inscription''' - LEICA SUMMARIT-M 1:2.5/75 E 46 (serial no.) | |||
*'''On the street''' - $US 1,595.00 | |||
Revision as of 14:01, 4 January 2009
- Leica Order No. - 11 645 LLC -
- Era - 2007-Current
- Lens mount - Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
- Number of lenses/groups - 6/4
- Aperture - 2.5 > 16 - Setting/Function Preset, with click-stops, half values available
- Focusing range - 0.9 / 3 ft to ∞
- Smallest object field/Largest reproduction ratio - For 35 mm, approx. 338 x 357 mm /1:14.1 = for LEICA M8, approx. 254 x 380 mm /1:9.9
- Position of entrance pupil - (from apex of 1st lens element) 29.9 mm / 1.2 in
- Angle of view (diagonal, horizontal, vertical) - For 35 mm (24 x 36 mm) : 32 deg, 27 deg, 18 deg, - for LEICA M8 (18 x 27 mm) : 24.4 deg, 20.4 deg, 13.7 deg, corresponds to a focal length of approx. 100 mm with 35 mm-format
- Scales - Combined meter/feet graduation
- Filter mount/Lens hood - Non-rotating, internal thread for screw-on filters size E46 / external thread for lens hood, protection ring for external thread included in delivery
- Accessories - Lens Hood
- Viewfinder - Camera viewfinder
- Material - Anodized aluminum, brass and optical glass
- Length to bayonet flange - approx. 60.5 mm / 2.4 in
- Largest diameter - approx. 55 mm / 2.2 in
- Weight - approx. 345 g / 12.2 oz
- Inscription - LEICA SUMMARIT-M 1:2.5/75 E 46 (serial no.)
- On the street - $US 1,595.00
