ER 3.5 - 14 x 42: Difference between revisions
From Leica Wiki (English)
Jump to navigationJump to search
mNo edit summary |
mNo edit summary |
||
| Line 1: | Line 1: | ||
[[Image:Rrr.jpg|80px]] [[Image:Rr3.jpg|90px]] [[Image:Kammans.jpg| | [[Image:Rrr.jpg|80px]] [[Image:Rr3.jpg|90px]] [[Image:Kammans.jpg|330px]] | ||
*'''Production era''' - 2009-2010 | *'''Production era''' - 2009-2010 | ||
*'''Order no. per Reticle''' - 10 optional reticles: 51010, 51020, 51011, 51021, 51012, 51022, 51013, 51023, 51014, 51024 | *'''Order no. per Reticle''' - 10 optional reticles: 51010, 51020, 51011, 51021, 51012, 51022, 51013, 51023, 51014, 51024 | ||
Revision as of 12:39, 5 August 2012
- Production era - 2009-2010
- Order no. per Reticle - 10 optional reticles: 51010, 51020, 51011, 51021, 51012, 51022, 51013, 51023, 51014, 51024
- Name and Type - ER 3.5 - 14 x 42 (variable magnification)
- Field of View - 2.75 - 10.4 m / 1000 m
- Weight - 513 g
- Length - 340 - 352 mm
- Eye Relief - 100.0 mm
- Waterproof to Depth - 4 m / 13.12 ft
- Materials - nitrogen filled aluminum
- Diopter Compensation - -4 / +3
- Accessories - 59000 lens hood "sunshade"

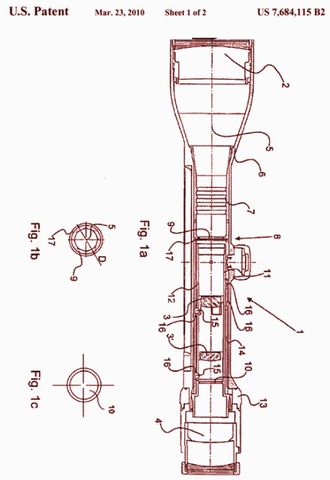

- Designer - Sigrun Kammans 05 Feb 2009
