21mm–35mm f/3.5–f/4.0 Vario Elmar R: Difference between revisions

Revision as of 22:21, 1 March 2009

Angle of view diagonal - Focal length 21 mm - 91.6° / Focal length 35 mm - 63.4°

Bayonet - LEICA R quick-change bayonet for LEICA R3 to LEICA R9 with mechanical, and, for LEICA R8/R9, additional electronic exposure control

Filter - Internal thread for screw-in type filters E 67

Lens hood - Separate, petal shaped sections

Number of elements / groups - 9 / 8

Focusing range - 0.5 m / 1.64 ft < infinity

Scale - Combined meter/feet-increments

Smallest object field - 21 mm focal length: 462 x 692 mm, 35 mm focal length: 300 x 450 mm

Highest reproduction ratio - 21mm focal length: 1:19.2, 35 mm focal length: 1:12.5

Setting / Type - Preset diaphragm with clickstops (including half values), Fully automatic diaphragm

Smallest aperture - f/22

Length - ca. 66.3 mm / 2.61 in

Largest diameter - ca. 75 mm / 2.95 in

Weight - ca. 500 g / 17.6 oz

@@ Line 1: / Line 1: @@

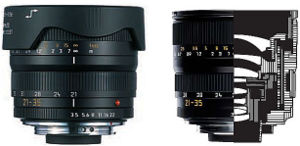

 [[Image:Rv-21f4.jpg|300px|]]
-'''Angle of view''' diagonal, horizontal, vertical -
+'''Angle of view''' diagonal - Focal length 21 mm  -  91.6° / Focal length 35 mm -  63.4°
 '''Bayonet''' - LEICA R quick-change bayonet for LEICA R3 to LEICA R9 with mechanical, and, for LEICA R8/R9, additional electronic exposure control
@@ Line 8: / Line 8: @@
 '''Lens hood''' - Separate, petal shaped sections
-'''Focal length 21 mm''' -  91.6°
-'''Focal length 35 mm''' -  63.4°
 '''Number of elements / groups''' -  9 / 8
-'''Focusing range''' -  0.5 m to infinity
+'''Focusing range''' -  0.5 m / 1.64 ft < infinity
 '''Scale''' -  Combined meter/feet-increments
@@ Line 27: / Line 23: @@
 '''Smallest aperture''' -  f/22
-'''Length''' -  ca. 66.3 mm
+'''Length''' -  ca. 66.3 mm / 2.61 in
-'''Largest diameter''' -  ca. 75 mm
+'''Largest diameter''' -  ca. 75 mm / 2.95 in
-'''Weight''' -  ca. 500 g
+'''Weight''' -  ca. 500 g / 17.6 oz
