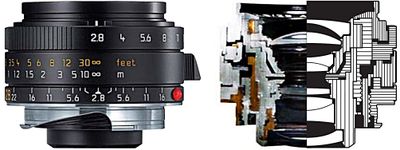

28mm f/2.8 ASPH Elmarit-M

• Leica Order No. - 11 606 / LLC -

• Era 2006-Current

• Variations - Black Serial Nos. - / Chrome Serial Nos. -

• Lens mount - Leica M quick-change bayonet with 6 bit identification bar code for digital M models

• Number of lenses/groups - 8/6

• Focusing range - 0.7 m / 2.3 ft < ∞

• Aperture - 2.8 > 22 - Setting/Function Preset, with click-stops, half values available, manual diaphragm

• Smallest object field/Largest reproduction ratio - for 35 mm: 533 x 800mm, for digital: 400 x 600 mm / 1:22

• Angle of view (diagonal, horizontal, vertical) - for 35 mm (24 x 36 mm): 75°, 65°, 46° for digital (18 x 27 mm): 60°, 51°, 36°, corresponds to a focal length of approx. 37mm with 35mm-format

• Position of entrance pupil - 12.8 mm (related to the first lens surface in light direction)

• Scales - Combined meter/feet graduation

• Filter mount/Lens hood - Internal thread for screw-on filters size E39 / Snap-on type (supplied)

• Accessories -

• Viewfinder - Camera viewfinder

• Materials - Anodized aluminum and optical glass / chrome plated brass and optical glass

• Focal length - 28.4 mm / 1.1 in

• Length to bayonet flange - approx. 30/46 mm (with/without lens hood) - 1.2/1.8 in

• Largest diameter - 52 mm / 2.1 in

• Weight - approx. 180 g / 6.3 oz

• Inscription - LEICA ELMARIT-M 1:2.8/28 E39 (serial no.)

• On the street - $US 1,795.00
