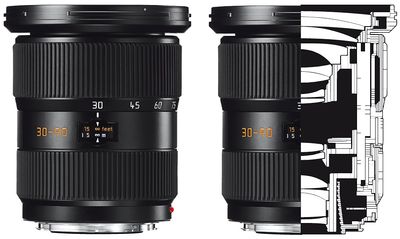

Vario-Elmar-S 30-90mm f/3.5-5.6 ASPH.

• Order number - 11058
• Production era - 2012-
• Optical design
  • Lenses /groups - 14 /11
  • Image angle (diagonal, horizontal, vertical) - WA 81.5°, 71°, 51°, T 34°, 28.5°, 19.5°, corresponds to approx. WA 24 /T 72 mm focal length in 35 mm format
  • Position of entrance pupil - WA 72.8 mm /T 65.9 mm from apex of 1st lens element
• Setting /function - Electronically controlled diaphragm, set using dial on camera, including half values
  • Aperture range - 3.5 to 32
  • Focusing range - 0.65 m to infinity
• Distance setting
  • Smallest object field - 514 mm × 771 mm at 30 mm /194 mm × 291 mm at 90 mm
  • Largest reproduction ratio - 1 : 6.5
• Size
  • Filter mount - Internal thread for E95 filter, filter mount does not rotate
  • Dimensions (diameter /length) - 101 mm /113.5 mm
  • Weight: 1275 g
• Accessories included - Lens Hood : 12404 - Rear lens cover : 16020 - Lens cover S 16027
• Serial nos. -
