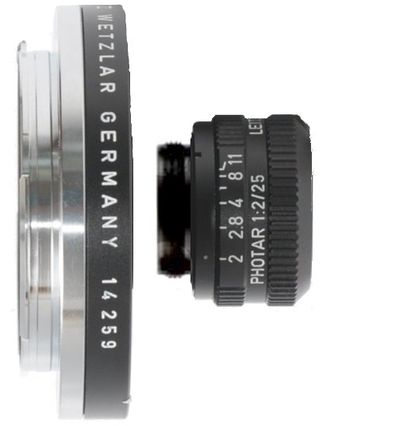

- Type - Connection plate for use with bellows R BR 2 and PHOTAR Lenses 25 mm f/2, 12.5 mm f2.4 or 50 mm f/4
- Order numbers - 14259 - 14441 - 14440 - 14442
- Magnification
- 12.5 mm f2.4 - 8.5 x - 17.5 x
- 25 mm f/2 - 3.5 x - 7.5 x
- 50 mm f/4 - 1.4 x - 3.4 x
- Object field size
- 12.5 mm f2.4 - 2.8 x 4.2 mm - 1.4 x 2.1 mm
- 25 mm f/2 - 6.8 x 10.2 mm - 3.2 x 4.8 mm
- 50 mm f/4 - 17.0 x 26.7 mm - 7.1 x 10.5 mm
- Clearance to object
- 12.5 mm f2.4 - 8-7 mm
- 25 mm f/2 - 22-17 mm
- 50 mm f/4 - 88-59 mm
