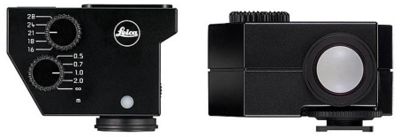

Universal Wideangle Finder M

From Leica Wiki (English)
Jump to navigationJump to search


  • Leica Order No. - 12 011
  • Production era 2006-2009
  • Type - Viewfinder with adjustable size positions - Frames are mirrored into the viewfinder image by a beamsplitter prism set
  • Mount - Standard camera flash shoe with screw attachment
  • Number of lenses/groups - 2 (Reverse Galileo Telescope)
  • Magnification - .28x
  • Frame settings - 16, 18, 21, 24, & 28 mm, mirrored in separately
  • Parallax compensation - 0.5 m / 1.64 ft < ∞ in 5 click-stop positions
  • Spirit level - Mirrored in (fluorescent coating) for landscape view only
  • Scales - Metric
  • Materials - Anodized aluminum, rubber eyepiece and optical glass
  • Size (D x W x H)- 52 x 70 x 38 mm / 2.05 x 2.76 x 1.50 in
  • Weight - 150 g / 5.3 oz
  • Inscription - Leica
  • On the street - $US 946 in 2008
